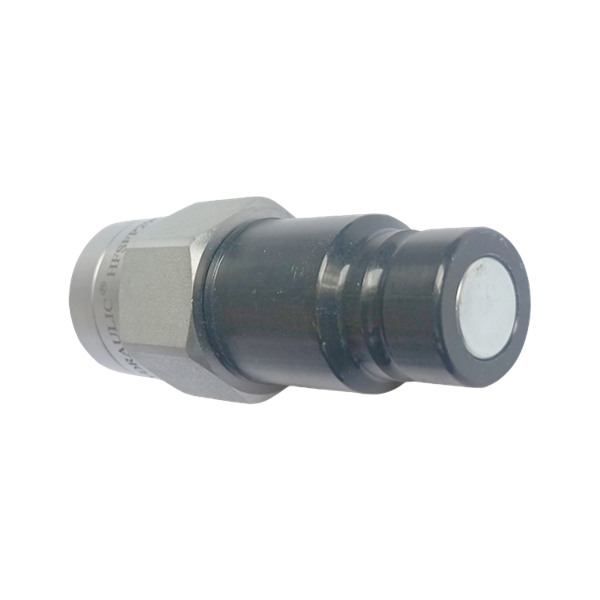

296 SERIES FLAT FACE COUPLING (CARBON STEEL), ISO-16028 STANDARD, CONNECT UNDER PRESSURE, PLUG

Service Online：

Overview

Valving style: Flat face
Interchange: STUCCHI A-HD/ APM SERIE ISO 16028 and HTMA
Available sizes: From 3/8" to 1"
Operating pressure: Up to 350 bar
Flow rate: Up to 378 L/Min
Material: High strength carbon steel
Connection system: Push
Connection under Pressure: Male side, other side to drain
